CHX22 Wall Mount Hood

CHX22 Wall Mount Hood

Wall Mount Range Hood

$1,010.00
$1,010.00
Sale Sold out
Shipping calculated at checkout.
Size
View full details

Product Description

KOBE Range Hoods' CHX22 series wall mount range hood is beautifully handcrafted with 18-gauge commercial grade stainless steel with satin finish. This come comes with powerful 680 CFM internal blower and is equipped with 3-speed mechanical push button, dishwasher-safe baffle filters and LED lights. It is designed to fit ceiling height between 7-1/ft and 9-1/2ft (Min 90" to Max 112"). Must purchase TVC20 for rectangular or rear venting. This item ships in multiple boxes.

Product ManualProduct SPEC

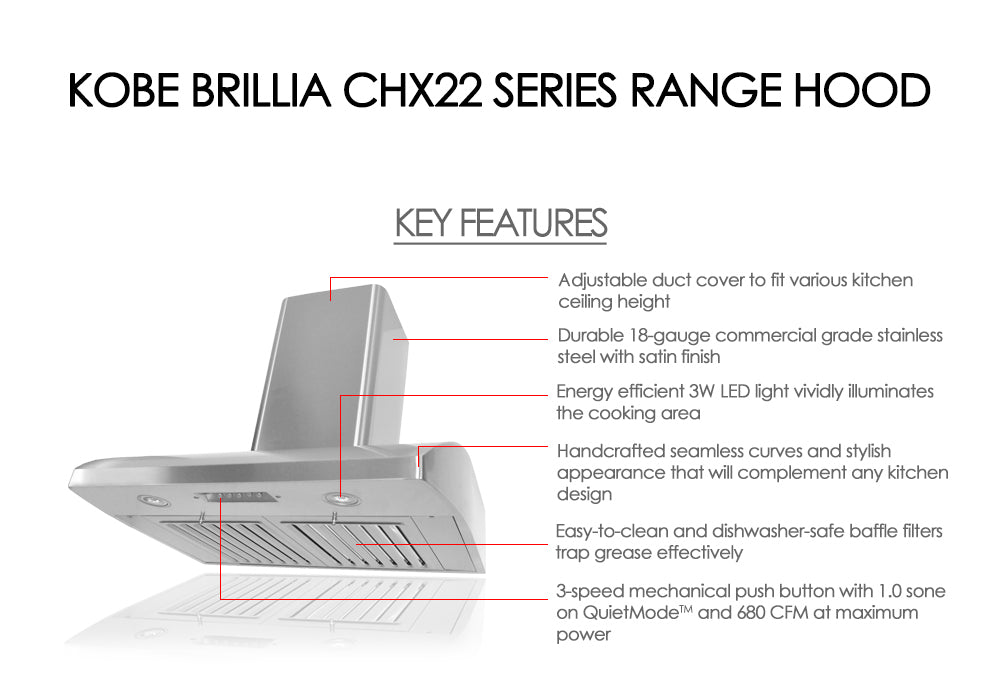

  • Hightligted Features

    • Available in 30-inch and 36-inch

    • Powerful 680 CFM internal blower

    • 3-speed mechnical push button with QuietMode™, Low and High speed

    • Includes 3-watt LED Lights to illuminate the cooking area

    • Easy to clean Baffle Filters to trap grease effectively

    • Operate with QuietMode™ at 1.0 sone

    • Optional acessory TVC20 is available to purchase for rectangular or rear venting

    • Fits ceiling height between 7-1/2ft and 9-1/2ft

    (Min 90" to Max 112")

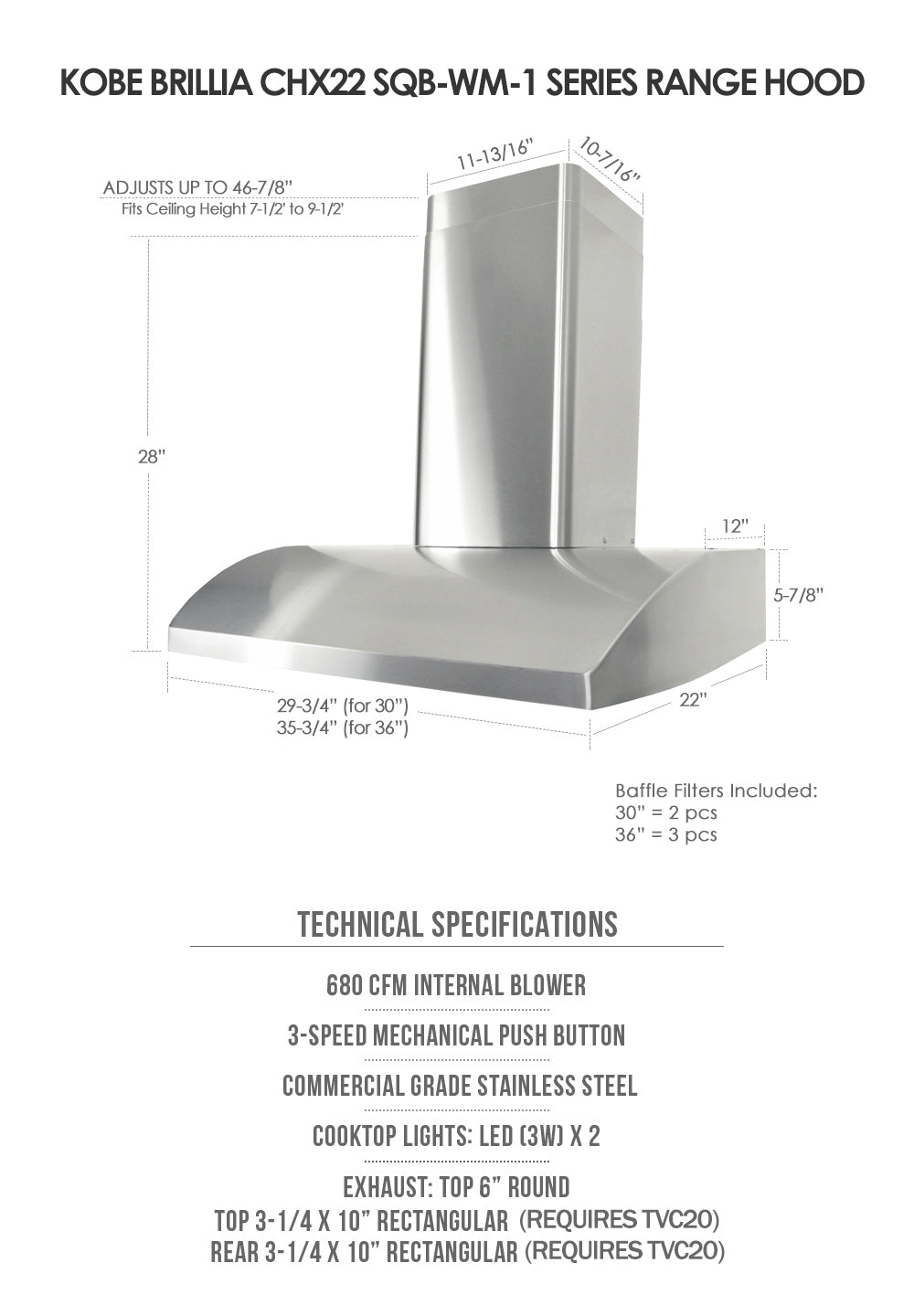

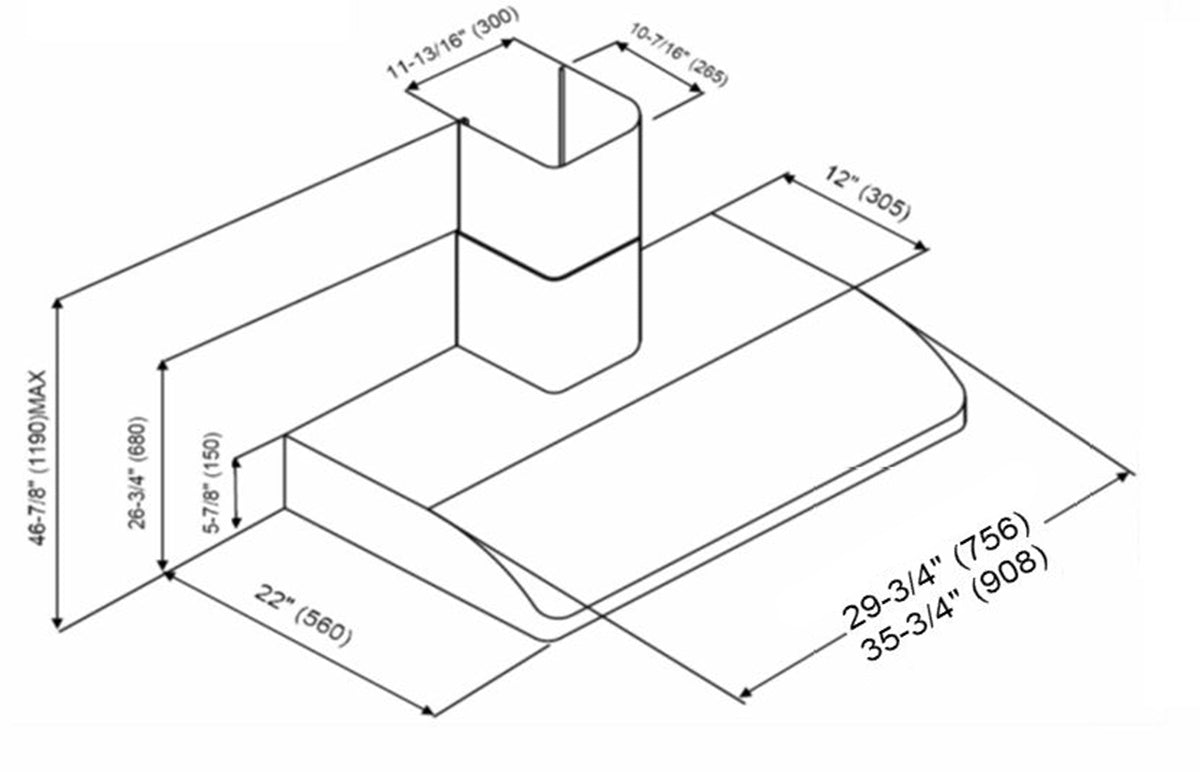

  • Specifications

    • Size: 30" , 36"

    • Type: Wall Mount Hood

    • Speed: 3-Speed

    • Control: Mechanical Push Button

    • Blower: 680 CFM Internal Blower

    • QuietMode: 1.0 Sone

    • Recirculating/Ductless: No

    • Ducting: Vertical , Horizontal

    • Filter: Baffle Filter

    • Light: 3-watt LED

    • ECO Mode: No

    • Exhaust: Top 6" Round , Top 3-1/4" x 10" Rectangular ,

    Rear 3-1/4" x 10" Rectangular

    • Fits Ceiling Height: 7-1/2ft - 9-1/2ft (Min 90" to Max 112")

  • Mechanical Push Button

    • 5 push buttons for easy operation

    • 3-speed: QuietMode, Low and High

    • Press speed button to operate fan

    • Press light button to operate lights

  • LED Lights

    • Improved lights for better sustainability

    • LED Light is known as using less energy than Halogen Light

    • Illuminate the cooking area vividly

  • Filters

    • Baffle Filter is pre-installed

    • Baffle Filter is dishwasher-safe

    • Easy to clean and trap grease effectively
